Mazda · 1986–1992 · track setup

RX-7 FC

The FC brought independent rear suspension and rack-and-pinion steering to the RX-7, and it is a light, cheap and rewarding track car. Stripped cars run near 2,400 lb. It is now old, so most of the work is refreshing bushings, cooling and the oil system, and taming the passive rear-steer bushings that blunt feedback at the limit.
Engine
1.3 L two-rotor Wankel (13B; turbo 13B-T)
Power
146–160 hp (NA); 182–200 hp (Turbo II)
Weight
≈2,700–2,850 lb
Layout
Front-engine
Drive
RWD

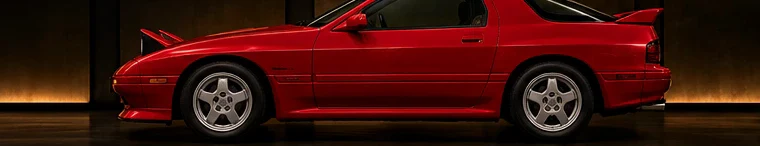

Side view of a Mazda RX-7 (FC)IllustrationPerformance planner ↓

These are starting points gathered from the sources listed at the bottom, not a guarantee. Cars, tires and parts vary: have a reputable alignment shop set your car, check factory specs for road use, and change one thing at a time.

01On track

Strengths
  • +Light and well balanced, with a low front-mid engine
  • +Independent rear suspension and quick steering
  • +Cheap to buy and run, with a deep racing parts history
  • +Responds well to weight removal; owners strip cars to around 2,400 lb
Watch out for
  • −DTSS rear toe-control bushings let the rear steer itself and dull feedback
  • −Little factory camber or caster adjustment; plates are needed for track camber
  • −Every car is 30+ years old: bushings, bearings, cooling and seals all need refreshing
  • −Oil surge and blow-by can push oil out in long corners

02Alignment

Where to start the alignment.

Alignment · starting points
VIEWED FROM BEHIND · CAMBER EXAGGERATED ×3-2.8°FRONT L-2.8°FRONT R-1.4°REAR L-1.4°REAR R
FrontRear
Camber-2.5° to -3.0°-1.0° to -1.7°
Toe0 to 1/8" out0 to 1/8" in
CasterAs much as the hardware allows (racers report about 6°)—

Racers report -2.8° to -3.0° front and -1.5° to -1.7° rear with zero toe on DTSS-eliminated cars, and front toe from 1/16" in on fast tracks to 1/8" out on tight ones. One autocrosser found -1.5° rear with 1/8" toe-in gripped better than -2.1°. Needs camber plates; tires show the wear at -3° front.

Sources [2,3,4,5]

03Tires & brakes

Tires and brakes

  • 200TW endurance
    • Bridgestone Potenza RE-71RS
    • Yokohama Advan A052
    • Falken Azenis RT660+
    • Nankang Sportnex CR-S
    • BFGoodrich g-Force Rival S 1.5
    225/50-15 on 15x7" (one racer's setup); owners fit up to 255 fronts on stock fenders

    Picks are from the 2025 Tire Rack 200TW track test, not FC-specific. Keep wheels light: racers stress low rotating mass on this car.

    Sources [2,8,10]
Brake pads

Owner reports: Hawk HP+ on all four corners with no fade on a lightly modified car; racers run a more aggressive front pad and a milder rear to keep the rear stable under braking.

Brake fluid

Castrol SRF (518°F wet boiling point) or Motul RBF 600 (401°F wet).

Fit stainless lines. Brake ducting is DIY on the FC; owners report the hose rubbing at full lock unless it is routed carefully. [2,8,11,12]

04Known issues on track

Fix these before they find you.

  • Oil surge and oil loss

    Owners report oil surging in long right-hand corners. One driver without a catch can had oil dump onto his rear tires, spun, and later seized a front stationary gear bearing: a real oil starvation risk. Track cars use a baffled or aftermarket pan, a catch can, and modified filler necks with drain-backs. Check the catch can after every session. [2]

  • Cooling and oil temperature

    To guard against overheating on an old car, owners start with a new or aluminum radiator and an oil temperature gauge. Racers run either two OEM oil coolers in parallel or one larger triple-pass cooler (an Improved Racing MHX-248 is reported to match a pair of OEM coolers), and one racer reports oil staying under 90°C with two coolers. Avoid cheap no-name coolers. [2,7]

  • DTSS rear toe bushings

    The factory Dynamic Tracking Suspension lets the outside rear wheel toe in up to about 1° in a corner. It adds stability but dulls feedback and grip near the limit. Track drivers replace the rubber joint with a rigid toe eliminator (Racing Beat and others); the seller says no realignment is needed, but expect the balance to change. [2,6]

  • Wheel bearings and steering rack

    Check wheel bearings and repack the fronts with high-temperature grease before lapping; brake heat and cornering loads find tired bearings. One racer found the steering rack slipping in its rubber mounts and shimmed it solid. [2]

  • Apex seals and lubrication

    Rotary seals depend on the oil metering system. Pettit Racing argues that modern fuels strip the oil film and recommends premix to cut wear. Get a rotary-specific compression test before buying or tracking a car with unknown history. [9]

05Modification roadmap

In the order that pays off.

  1. 0
    Safety & reliability first

    Safety and reliability first

    • Compression test, fresh fluidsKnow the engine before you lap it; change diff and gearbox oil too.
    • Radiator, oil cooling and gaugesAn aluminum radiator, good oil coolers and an oil temperature gauge keep heat in check.
    • Catch can and baffled oil panStops oil surge from pushing oil onto your tires or starving the engine.
    • Wheel bearings and bushingsA 30-year-old car needs fresh bearings, grease and a bushing kit.
    • Pads, fluid and stainless linesA firm pedal and fluid that will not boil.
    • Seats and harnesses only with proper roll protectionNever fit harnesses without a roll bar or cage.
  2. 1
    Tires & alignment

    Tires and alignment

    • DTSS toe eliminatorsRemoves passive rear steer for consistent feedback.
    • Front camber platesNeeded to reach -2.5° to -3.0° front.
    • 200TW tires on light 15" or 16" wheelsGrip without adding rotating mass.
  3. 2
    Suspension & brakes

    Suspension and weight

    • Coilovers with sensible ratesRacers run roughly 400/275 to 600/400 lb/in front/rear depending on track.
    • Weight removalOne racer estimates 200 lb is worth about 2 seconds a lap at Mosport.
  4. 3
    Power & aero

    Power last

    • Intake, exhaust, portingOnly after the oil system and cooling can take sustained high revs.

06Performance planner

What each upgrade is worth on this car.

Pick upgrades and see the estimated lap-time change on a reference circuit, how much margin your brakes and engine have late in a session, and which changes buy durability rather than speed.

Performance planner · RX-7 FCModel estimate
Tires
Brake pads
Brake fluid
Brake cooling
Brakes
Alignment
Suspension
Differential
Weight
Power
Cooling
Oil system
Aero
1:56.80stock 1:56.80−0.0%

Reference circuit (fictional, 3.5 km). Late lap includes brake fade and heat derating once the system runs out of margin.

T1T2T3T4T5T6T7T8SPEED · your plan vs stock · top 103 mph
Brake fade marginFades
Engine heat marginDerates
Oil starvation riskLow
Tire life (relative)100%
Sensitivity · each upgrade alone vs stock (late lap)
  • R-compound tires−5.06%load ↑
  • 200TW endurance tires−2.41%load ↑
  • Oil cooler + radiator−0.69%durability ↑
  • Track alignment−0.68%
  • Coilovers + sway bars−0.56%
  • Street/track pads−0.55%durability ↑
  • Race pads−0.55%durability ↑
  • High-temp fluid−0.55%durability ↑
  • Brake cooling ducts−0.55%durability ↑
  • Big brake kit−0.51%durability ↑
  • Lighter wheels + seat−0.43%
  • Splitter + wing−0.36%durability ↑
  • Oil system (baffles / accumulator)±0durability ↑
  • Limited-slip differential±0
  • Intake, exhaust, tune±0load ↑
This car’s roadmap below starts with: Compression test, fresh fluids · Radiator, oil cooling and gauges · Catch can and baffled oil pan · Wheel bearings and bushings

Estimates from a simplified point-mass lap simulation of RX-7 FC (2,701 lb, 146 hp) on a fictional circuit, with generic effects for each upgrade category. Good for comparing options on the same car, not for predicting your lap time. Real results depend on the driver, the exact parts, the track and the conditions. Durability starts lower on this car because of its known issues: oil starvation, heat.

Free printable setup sheet →

Sources

Last reviewed 2026-10-18. Summaries are TRACK’s own wording; follow the links for the original detail. Product and brand names belong to their owners.

  1. [1]Mazda RX-7Wikipedia · accessed 2026-10
  2. [2]RX7 FC Track Car Tips and Tricks (owner and racer discussion)RX7Club.com · accessed 2026-10
  3. [3]Road Racing FC Alignment (racer discussion)RX7Club.com · accessed 2026-10
  4. [4]FC alignment settings (mildly aggressive) (owner discussion)RX7Club.com · accessed 2026-10
  5. [5]Track alignment Specs? (owner discussion)RX7Club.com · accessed 2026-10
  6. [6]86-92 RX-7 Racing Beat Rear Suspension Upright Toe EliminatorAtkins Rotary · accessed 2026-10
  7. [7]Stock Mounting Aftermarket Oil Coolers (racer discussion)RX7Club.com · accessed 2026-10
  8. [8]FC brake cooling ideas (owner discussion)RX7Club.com · accessed 2026-10
  9. [9]The Guide to Performance and LongevityPettit Racing · accessed 2026-10
  10. [10]2025 Tire Rack Extreme Performance Track Tyre Test (summary of Tire Rack data)Tyre Reviews · accessed 2026-10
  11. [11]Brake FluidBimmerWorld · accessed 2026-10
  12. [12]Getting Better Brake Performance From Your Mazda RX-7 / RX-8Pettit Racing · accessed 2026-10
